Ref: SGA12A

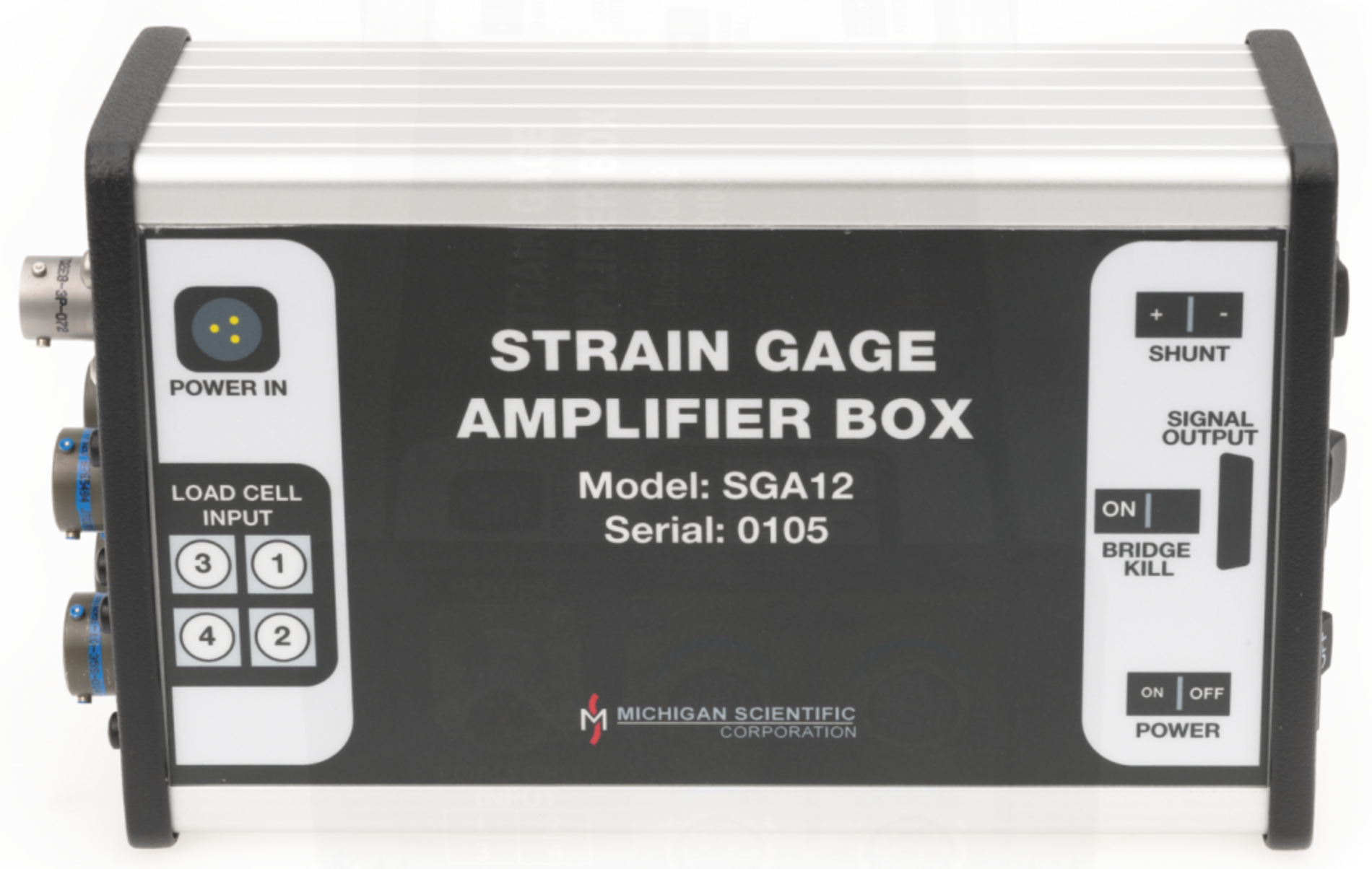

Twelve Channel Strain Gage Amplifier Box for 3D load cells

Ideal for use with MSC TR3D load cells
Contains internal power supply
Controls up to four external Michigan Scientific load cells
Precision low drift bridge excitation supply 10 Volts
Provides high level voltage signal output
Bridge excitation may be remotely turned on and off
Precision, low noise, differential amplifier
Amplified signal is at high-level voltage (+10 Volts full scale)
Immune to external noise sources
Remote shunt calibration capability
Wide input voltage range

Description

The Michigan Scientific SGA12A-PS Strain Gage Amplifier Box is ideal for use with up to four of MSC’s wide variety of three directional load cells. The SGA12A-PS provides highly accurate excitation voltage to the load cell, a stable differential amplifier, and a remotely activated shunt resistor for system span verification. The result is an accurate high level voltage output signal. The shunt calibration can be easily invoked with the flip of a switch. An internal DC power control unit powers the amplifiers and controls excitation to strain gauge bridges.

The appropriate amplifier gain and shunt resistors can be application specific selected for use with your selected load cell. The fixed precision resistors are factory installed.

The standard SGA12A-PS is comprised of twelve independent miniature strain gage amplifiers. MSC can customize the amplifier box to any number of channels desired.
